3-Way U-PVC Metric Manual Ball Valves

The 3-Way U-PVC Metric Manual Ball Valves are available in sizes from 25 to 63mm and have weights ranging from 303 to 1843g. These valves are equipped with versatile 3-way L and T port designs, making them suitable for a variety of applications, including chemical processing, water treatment, irrigation, and wastewater management. They feature PTFE seat material and EPDM seals, ensuring effective flow control and resistance to a wide range of chemicals, enhancing their utility in various industrial settings.
Shop Help Me

Key Features

Key features and benefits of 3-Way U-PVC Metric Manual Ball Valves
1

Key Features

The valves come with 3-way L and T port options, providing flexibility in directing flow within a system, which is critical for complex piping arrangements.
2

Key Features

Constructed with PTFE seats and EPDM seals, these valves resist corrosion from various chemicals, ensuring longevity and reliability in harsh environments.
3

Key Features

Suitable for multiple sectors, these valves efficiently manage the flow of liquids in applications like chemical processing and water treatment, underscoring their adaptability and efficiency.

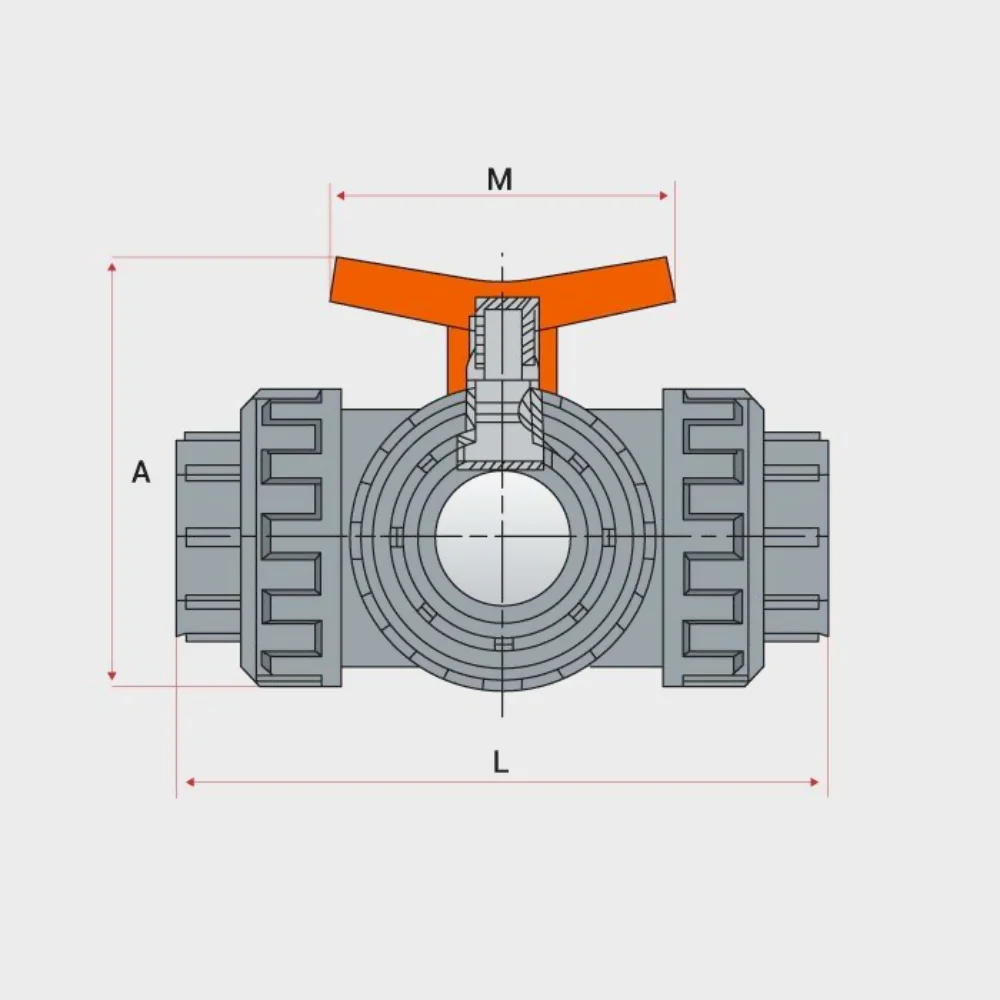

Valve Specifications

SIZE D1 D L A M T N
1/2" 15 20 112 80 85 45 57
3/4" 20 25 123 87 85 55 62
1" 25 32 147 104 100 66 74
1 1/4" 32 40 169 115 100 79 82
1 1/2" 40 50 207 145 128 102 94
2" 50 63 230 160 128 111 117

Valve Documentation

  • Document
Instructions Manual

EPCO U-PVC Jointing Procedures
  • Document
Certification

EPCO ISO 2009:2015
  • Document
Certification

U-PVC WRAS Certificate

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Frequently Asked Questions

A U-PVC Metric Manual Ball Valve is a type of valve used to control the flow of liquids in piping systems. It is made from unplasticized polyvinyl chloride (U-PVC) and follows metric measurement standards.

U-PVC Metric Manual Ball Valves are commonly used in water treatment, chemical processing, irrigation, and swimming pool systems due to their corrosion resistance and durability.

To install a U-PVC Metric Manual Ball Valve, ensure the piping is clean, cut the pipe to the appropriate length, apply primer and solvent cement, then insert the valve into the pipe and allow it to cure according to the manufacturer’s instructions.

Advantages include chemical resistance, lightweight construction, easy installation, low maintenance, and cost-effectiveness, making them ideal for various industrial and residential applications.

U-PVC Metric Manual Ball Valves differ in material composition (U-PVC vs. metal or other plastics), metric sizing standards, and their suitability for handling corrosive and chemical-laden fluids.

U-PVC Metric Manual Ball Valves have a temperature limit, typically up to 60°C (140°F). They are not recommended for use in high-temperature applications.

Maintenance involves regular inspection for leaks, cleaning the valve seat and ball, and ensuring the valve operates smoothly. Replace any worn-out parts as needed.

Yes, U-PVC Metric Manual Ball Valves are often used in drinking water systems as they are non-toxic and resistant to corrosion.

U-PVC Metric Manual Ball Valves are available in various sizes, typically ranging from 16mm to 110mm, following metric standards.

Consider factors such as the fluid type, pressure rating, temperature, and size requirements of your piping system when choosing a U-PVC Metric Manual Ball Valve.

Yes, U-PVC Metric Manual Ball Valves can be used outdoors; however, it is important to protect them from prolonged exposure to UV rays to prevent degradation.

The pressure rating of U-PVC Metric Manual Ball Valves typically ranges between 10 to 16 bar, depending on the size and specific valve model.
