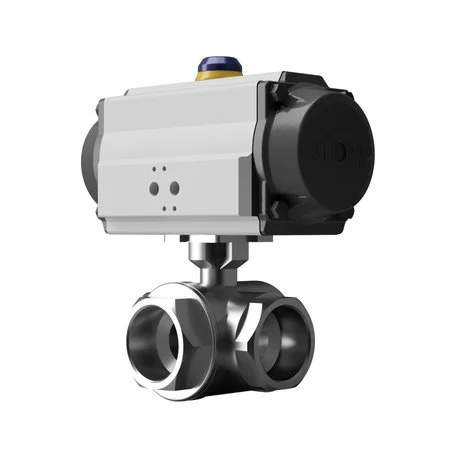

3-Way Reduced Bore BSPP Air Torque Actuator Ball Valves

The AV-L5000AT & AV-L5100AT L & T port ball valves offer a cost effective process diverting operation. Whether you are looking for a spring return or double acting pneumatically actuated 3-way ball valve that requires gradual or rapid opening and closing times actuation valve can offer a easy fit solution for screwed pipelines. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed. All actuated valve assemblies can be supplied with operations and maintenance manuals. The Air Torque range of pneumatic actuators is extremely versatile and easy to install. Their lightweight design means they don't require heavy duty mounting points, so you can fit them anywhere on your production line without affecting product flow or increasing costs unnecessarily.

Key Features

Key features and benefits of AV-L5000AT & AV-L5100AT Actuated Ball Valves.
1

Key Features

Available in screwed connections NPT & BSP the versatile and economical Valve comes with a WRAS (Water Regulations Advisory Scheme) Certified TFM 1600 PTFE Seat which is also FDA approved. The 3-Way diverter valve features a direct mount actuation pad for quick and easy automation.
2

Key Features

Option indicators available for the Air Torque actuator include direct mounting puk sensors such as P&F, IFM and other manufactures depending on end user approved vendor lists (AVL’s). Mechanical limit switch boxes are also available from stock for quick assembly.
3

Key Features

Certificate of conformities can be supplied by Air Torque along with your actuator or actuated valve package and each individual actuator is factory tested and inspected prior to packing and despatch to us in the UK form their Italian factory.

RB 3-Way Ball Valve Technical Stuff

B C D B C D E
SR SR DA DA DA DA SR/DA
1/4" 72.00 132.00 137.00 72.00 132.00 137.00 79.00
3/8" 72.00 132.00 137.00 72.00 132.00 137.00 79.00
1/2" 72.00 132.00 137.00 72.00 132.00 137.00 79.00
3/4" 84.50 154.00 153.50 72.00 138.00 137.00 88.00
1" 93.00 181.50 203.50 72.00 148.50 137.00 108.00
1 1/4" 93.00 185.00 203.50 84.50 168.00 153.50 124.00
1 1/2" 106.00 208.50 241.00 84.50 178.50 153.50 135.00
2" 118.50 229.80 259.00 93.00 204.80 203.50 164.00
2.5" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA
4" TBA TBA TBA TBA TBA TBA TBA
5" TBA TBA TBA TBA TBA TBA TBA

RB 3-Way Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Why Air Torque

We have stock!

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Superior Durability and Reliability

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

3D Step Files Available

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

Expert Customer Support

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: PTFE
Stem Packing Material: PTFE
Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110
BSP Ends: BSPP IS0 228/1

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

3-Way Valve Configuration

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
