3-Way Ball Valves are available as an L Port or T Port can be used in heating and hot water applications to regulate temperature. The valves control the flow of liquid passing through them to either allow flow in one direction or another, or divert flow from one path to another. The industry-leading AV-L5300 & 5400 Full Bore Multiport 3-Way Ball Valve has been designed specifically for small to medium sized control systems with reduced torques. This can help reduce costs and increase performance by allowing smooth operation from your valves. UNIC Electric Actuator by Koei Industry was made specifically for continuous process applications where frequent start/stop cycles would damage a traditional motorised actuators. The Koei UNIC electric actuator allows you to increase productivity and reduce costs.

Shop Help Me

Key features and benefits of AV-L5300EK & AV-L5400EK Actuated Ball Valves.

Key Features

The AV-L5300 & 5400 Full Bore 3-Way Ball Valve is suited to Screwed connections and the stainless steel body houses either an L or T drilled ball configuration. The L port valve is drilled at 90 degrees from two different sides to resemble an L whereas the T also features one hole straight through.

Key Features

The Koei UNIC electric actuator provides unrivalled levels of performance in its class with long life precision control. It also offers flexibility to replace pneumatic actuators where cost savings are required without compromising on quality or performance.

Key Features

The Koei UNIC Electric Actuator has a number of safety features including an easy to use Allen Key Manual Override, overload protection system and end-of travel electric stop for when you need it most.

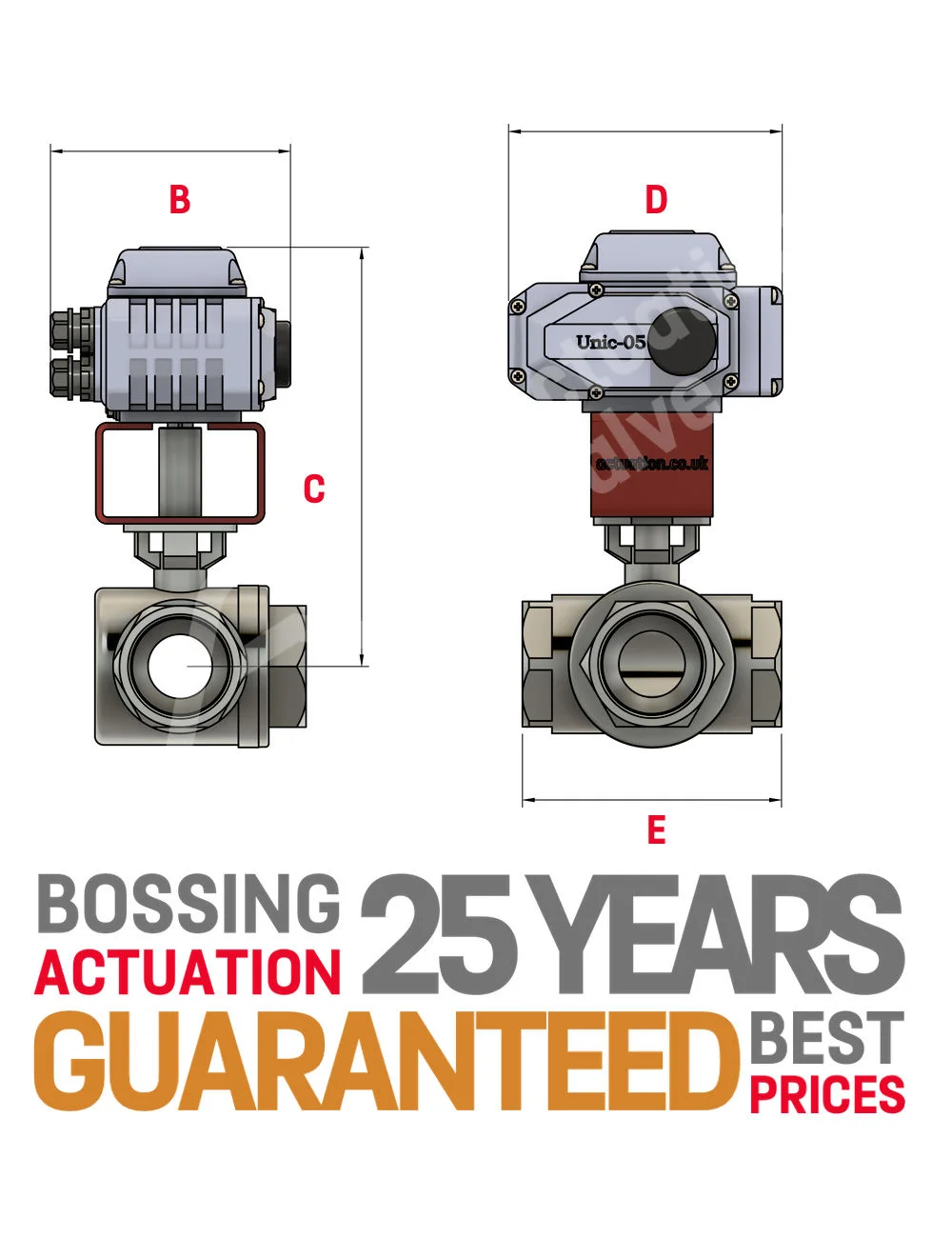

	B	C	D	E	Model

1/4"	145.00	219.00	159.00	79.00	UNIC 05
3/8"	145.00	219.00	159.00	79.00	UNIC 05
1/2"	145.00	225.00	159.00	88.00	UNIC 05
3/4"	145.00	235.50	159.00	108.00	UNIC 05
1"	145.00	239.00	159.00	124.00	UNIC 05
1 1/4"	145.00	249.50	159.00	135.00	UNIC 05
1 1/2"	155.00	284.80	208.00	164.00	UNIC 10
2"	TBA	TBA	TBA	TBA	TBA
2 1/2"	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA
4"	TBA	TBA	TBA	TBA	TBA
5"	TBA	TBA	TBA	TBA	TBA
6"	TBA	TBA	TBA	TBA	TBA

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

DRAWINGS & SCHEMATICS

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 400
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 7-1

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Brochures

Certificates & Approvals

Operations

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
