Available in screwed connections NPT & BSP the versatile and economical Valve comes with a WRAS (Water Regulations Advisory Scheme) Certified TFM 1600 PTFE Seat which is also FDA approved. Classified for use in potentially explosive environments the Actreg Actuator is suitable for Group II Category 2 Zones 1, 2, 21 & 22 in accordance with directive 2014/34/EU Atex. All Actuators are certified according to Pressure Equipment Directive (PED 2014/68/EU). Actreg's Actuator is built for long-lasting, reliable performance with a wide variety of materials and options that allow you to specify alternate coatings that are best suited for your application requirements. The pneumatic actuators combine quality parts designed over many years by in field experts. All available at a competitive price point

Shop Help Me

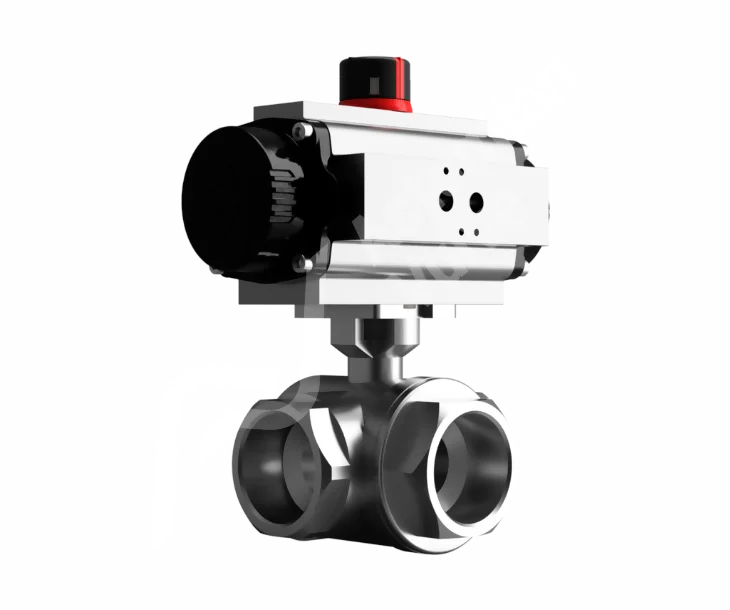

Key features and benefits of AV-L5300AC & AV-L5400AC Actuated Ball Valves.

Key Features

The AV-L5300 & 5400 Full Bore 3-Way Ball Valves are silicone free and suitable for use on oils based paint products and applications. This allows complete assurance that the Valve will not apply any contamination to the medium that could effect the end finish.

Key Features

Actuation Valve provide fast turnaround times without sacrificing quality or expertise and all orders come with a two page test report detailing all opening/closing times on each valve tested. Whether you need one product or several hundred off-the-shelf parts, we can deliver.

Key Features

Actreg Pneumatic Actuators are the perfect solution for installations that require frequent on/off cycles. Designed specifically to work in applications where material handling is required, these devices can be rated up safely and securely with a high safety integrity level (SIL 3).

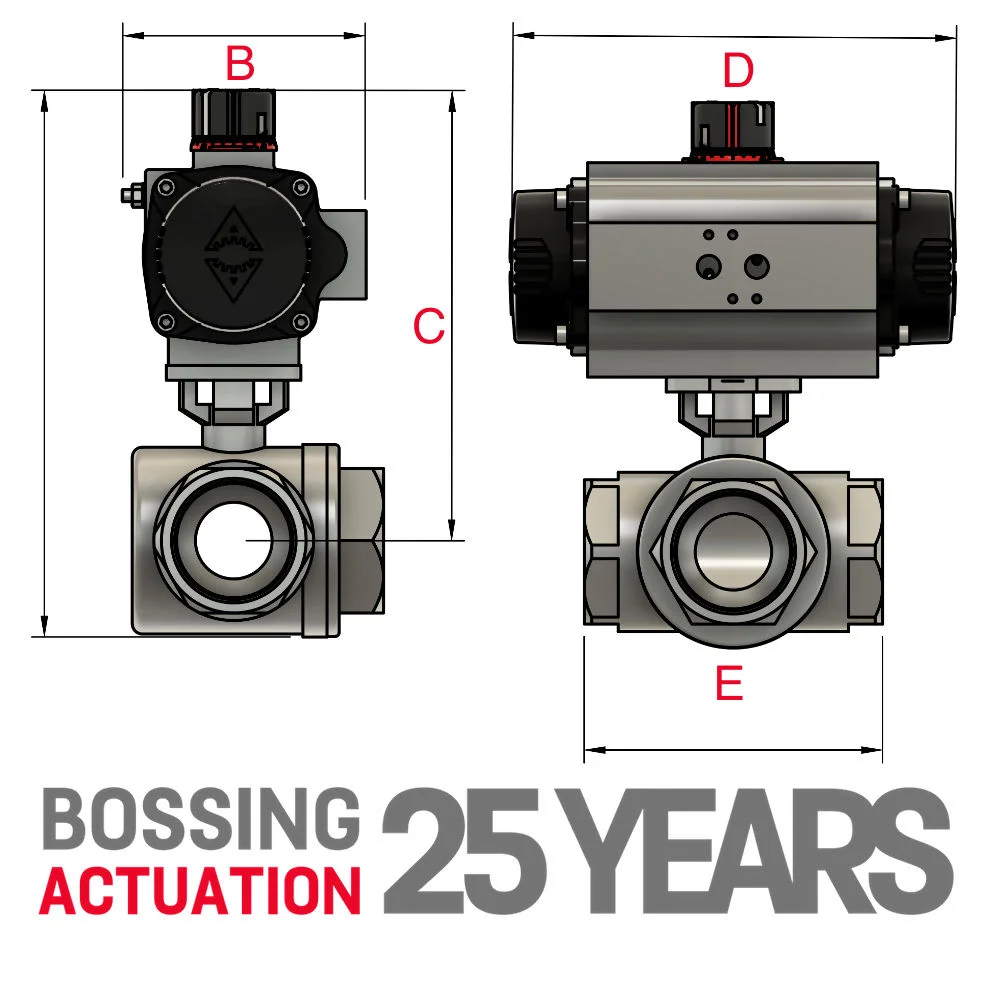

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/4"	81.00	139.00	163.00	79.00	81.00	139.00	145.00	79.00
3/8"	81.00	139.00	163.00	79.00	81.00	139.00	145.00	79.00
1/2"	81.00	139.00	163.00	79.00	81.00	139.00	145.00	79.00
3/4"	81.00	145.00	163.00	88.00	81.00	145.00	145.00	88.00
1"	96.00	174.50	195.00	108.00	96.00	174.50	158.00	108.00
1 1/4"	96.00	178.00	195.00	124.00	96.00	178.00	158.00	124.00
1 1/2"	116.00	210.50	217.00	135.00	116.00	210.50	177.00	135.00
2"	116.00	219.80	217.00	164.00	116.00	219.80	177.00	164.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PTFE
Stem Packing Material:	PTFE
Design Standard:	MSS SP-110
Wall Thickness:	ASME B16.34 Class 400
Inspection & Testing:	MSS SP-110
BSP Ends:	BSPP IS0 7-1

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

DRAWINGS & SCHEMATICS

CERTIFICATES & APPROVALS

Actreg Actuator Videos

Spring Change

Stroke Adjustment

Multiple Valve configurations available depending on your application requirements. Request a copy configurator or give us a call and our 3-Way Experts will talk you through the options.
