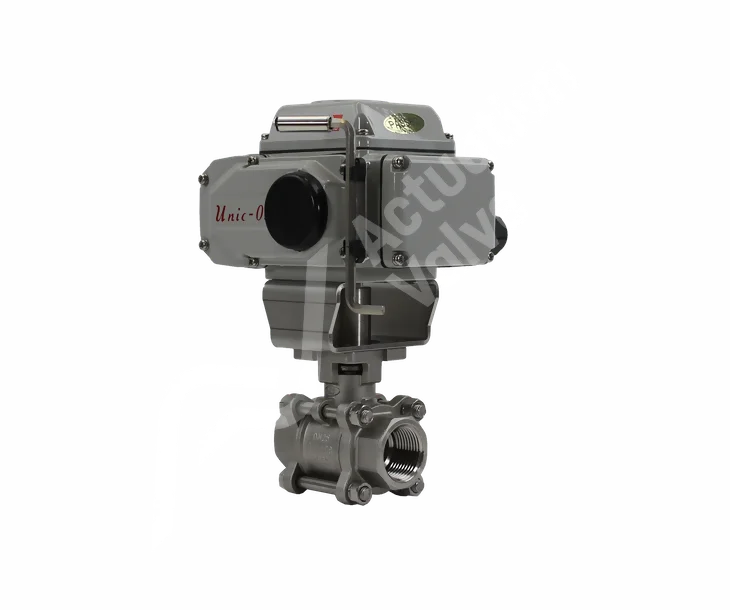

The AV-L3000EK, 3100EK & 3200EK actuated ball valves form part of the 3 piece stainless steel standard valve range from Actuation Valve. This particular unit has a drop out centre section that is fully maintainable without the need for completely removing the valve. Perfect for scheduled maintenance and seat replacements. Various approvals include FDA & WRAS approved seats as well as DNV/Lloyds. Additional options included FOC are (Certificate Of Conformity) and a two page full build assembly and Calibration Certificate. Every unit is assembled and tested in house prior to despatch.

Shop Help Me

Key features and benefits of AV-L3000EK, AV-L3100EK & AV-L3200EK Actuated Ball Valves.

Key Features

One of the world's most advanced electric actuators and available for quick and easy installation. All units come complete with an operations manual that covers everything you need to know about your equipment, as well as free after sales support from our team of experts.

Key Features

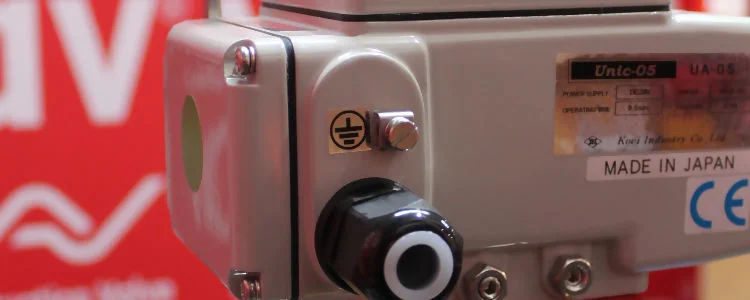

Koei’s new UNIC series of electric actuators are designed for 100% continuous operation. Since they're powered by electricity instead of compressed air there's no risk of downtime due to maintenance issues with additional factors such as compressors.

Key Features

The three piece design helps prevent damage caused by improper disassembly when removing and replacing seals or other components in the valve body. Our innovative design also allows users to replace any single component without having to replace the entire valve assembly.

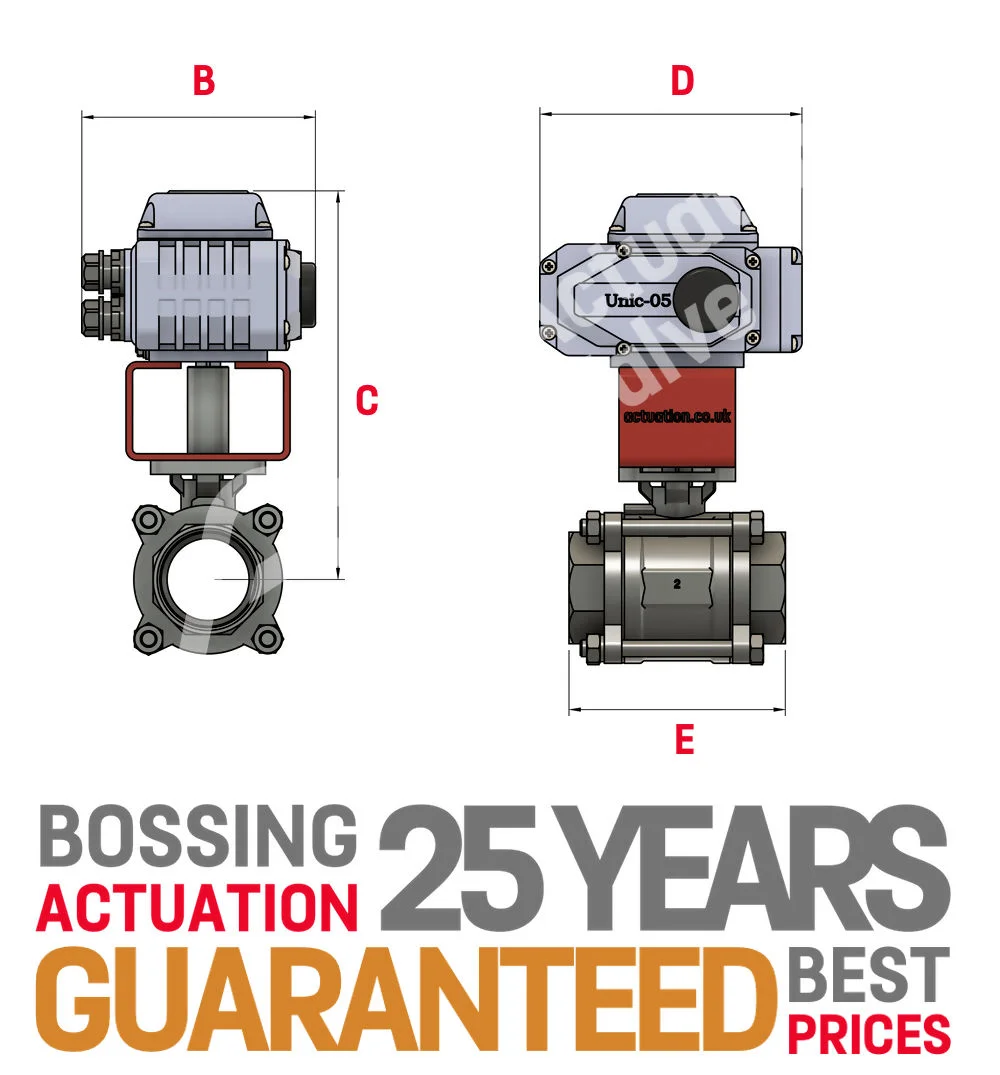

	B	C	D	E	Model

1/4"	145.00	218.00	159.00	75.00	UNIC 05
3/8"	145.00	218.00	159.00	75.00	UNIC 05
1/2"	145.00	218.00	159.00	75.00	UNIC 05
3/4"	145.00	224.50	159.00	80.00	UNIC 05
1"	145.00	234.50	159.00	90.00	UNIC 05
1 1/4"	145.00	239.00	159.00	110.00	UNIC 05
1 1/2"	145.00	247.00	159.00	120.00	UNIC 05
2"	145.00	254.20	159.00	140.00	UNIC 05
2 1/2"	155.00	302.00	208.00	185.00	UNIC 10
3"	155.00	310.50	208.00	205.00	UNIC 10
4"	187.00	350.00	257.00	240.00	UNIC 20

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

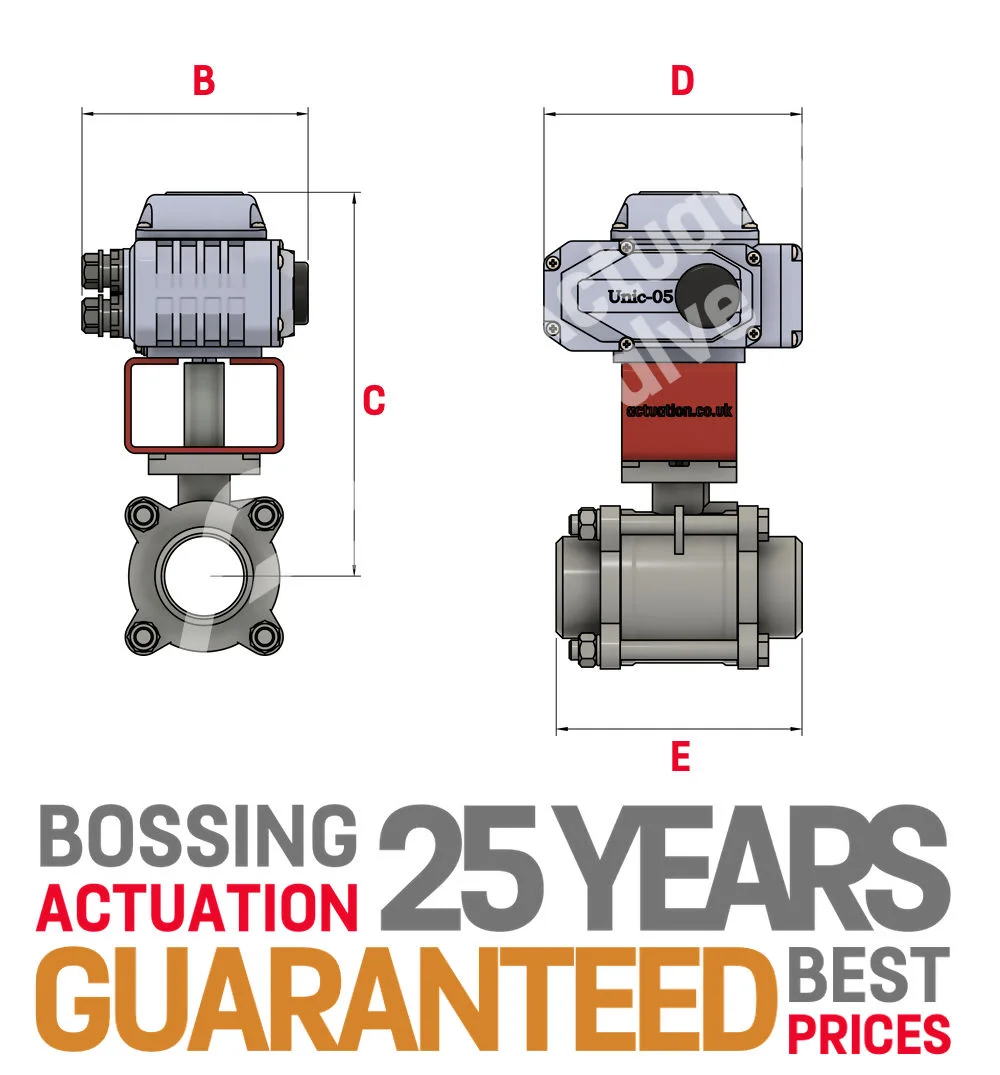

	B	C	D	E	Model

1/4"	145.00	218.00	159.00	70.00	UNIC 05
3/8"	145.00	218.00	159.00	70.00	UNIC 05
1/2"	145.00	176.50	159.00	75.00	UNIC 05
3/4"	145.00	224.50	159.00	90.00	UNIC 05
1"	145.00	224.50	159.00	100.00	UNIC 05
1 1/4"	145.00	239.00	159.00	110.00	UNIC 05
1 1/2"	145.00	247.30	159.00	125.00	UNIC 05
2"	145.00	254.20	159.00	150.00	UNIC 05
2 1/2"	155.00	302.00	208.00	190.00	UNIC 10
3"	155.00	310.50	208.00	220.00	UNIC 10
4"	187.00	350.00	257.00	270.00	UNIC 20

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Design Standard:	MSS SP-110
Wall Thickness:	EN 12516-3
Inspection & Testing:	MSS SP-110
BSP Ends: (AV-L3000)	BSP IS0 7-1 (DIN 2999)
NPT Ends: (AV-L3000)	ASME B1.20.1
Socket Weld Ends: (AV-L3100)	ASME B16.11
Butt Weld Ends: (AV-L3200)	ASME B16.25 (Sch 40)
Pressure Rating:	1000 PSI

A 3 Piece Premium Ball Valve is a type of ball valve consisting of three main components: a central ball with a hole through it, and two end caps. It is known for its durability and ease of maintenance.

These valves are commonly used in various industries for controlling the flow of fluids, including water, oil, gas, and chemicals. They are ideal for isolation and throttling applications.

Premium ball valves often feature high-quality materials, precision machining, and better sealing capabilities, making them more reliable and suitable for critical applications.

Yes, many premium ball valves are available in materials resistant to corrosion, such as stainless steel, making them suitable for handling corrosive substances.

Yes, 3 Piece Premium Ball Valves are often designed to withstand high-pressure environments, making them suitable for industrial and process control systems.

Maintenance typically involves periodic cleaning, lubrication, and replacement of seals or gaskets when necessary. Refer to the manufacturer's guidelines for specific maintenance instructions.

They provide excellent flow control, tight shut-off, and minimal pressure drop, making them a preferred choice for many applications. Their disassembly for maintenance without cutting into the pipeline is another advantage.

Yes, many of these valves can be automated by adding actuators, making them suitable for remote or automated control systems.

The temperature range depends on the materials used, but many premium ball valves can handle temperatures from -20°C to 200°C or higher, depending on the design and materials.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
