Air Torque Premium Actuated 2 Piece Ball Valves

The AV-L2000AT is a stainless steel full bore ball valve offering a premium SIL rated valve for an economy price range. All devices come with ISO 5211 direct mounting pad for express actuation assembly 48 hour shipping and are ATEX approved.Suitable for pressures up to 1000 PSI this silicone free actuated ball valve is available as a straight pneumatic operation or electrically piloted with fail in position or fail closed requirements. PTFE TFM 1600 seats can be adapted to TFM 4215 for higher temperature applications.

Key Features

Key features and benefits of AV-L2000AT Actuated Ball Valves.
1

Key Features

The AV-L2000 full bore two piece stainless steel ball valves feature an innovative design that will transform your operation with increased efficiency and reliability. A high quality 316 stainless steel reduces total cost of ownership compared to standard carbon steel models.
2

Key Features

Air torque pneumatic actuators have been optimised for performance and durability at every stage of its development, from design through production and testing. With over 30 years of experience designing durable, reliable components, you can trust us with your project's success.
3

Key Features

Stock range of couplings and brackets available to suit the Air Torque range of actuators and any valves that require the linkages. This enables Actuation Valve to offer a quick lead time and turnaround for all actuated valve packages involving the air torque unit.

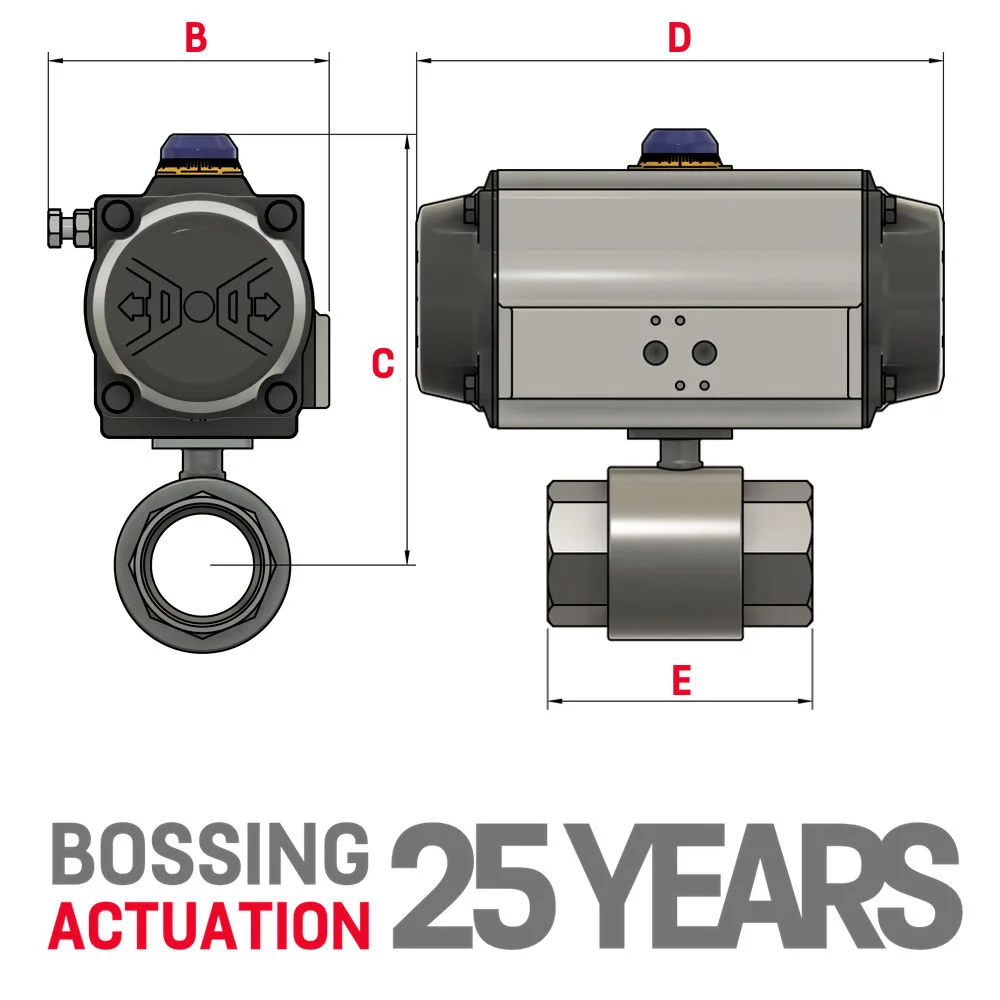

AV-L2000AT Ball Valve Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/4" 72.00 131.50 137.00 67.00 72.00 131.50 137.00 67.00
3/8" 72.00 131.50 137.00 67.00 72.00 131.50 137.00 67.00
1/2" 72.00 131.50 137.00 67.00 72.00 131.50 137.00 67.00
3/4" 72.00 138.00 137.00 70.40 72.00 138.00 137.00 70.40
1" 84.50 163.00 153.50 85.00 72.00 147.00 137.00 85.00
1 1/4" 93.00 184.50 203.50 94.00 72.00 151.50 137.00 94.00
1 1/2" 93.00 193.50 203.50 105.00 84.50 176.50 153.50 105.00
2" 106.00 213.50 241.00 125.00 93.00 200.50 203.50 125.00
2 1/2" 118.50 247.00 259.00 155.00 93.00 222.00 203.50 155.00
3" 136.00 284.00 304.00 173.00 106.00 244.00 241.00 173.00

AV-L2000AT Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Why Air Torque

We have stock!

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Superior Durability and Reliability

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

3D Step Files Available

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

Expert Customer Support

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10
Pressure Rating: 1000 PSI

Frequent Interrogation

Premium valves use higher grade materials like 316 stainless steel or chrome plated brass for better corrosion resistance and durability. Other options include PTFE seats and silicone balls.

End connections for premium valves include threaded, socket weld, butt weld, and flanged in sizes from 1/4" to 2" for various applications. Sanitary tri-clamp connections are also available.

Pressure ratings reach up to 6000 psi with high temperature ratings around 800°F depending on the materials used. Always verify the manufacturer's pressure vs temperature chart.

A floating ball is not fixed to the stem but floats between two seats. This provides even sealing and prevents leak paths during thermal expansion.

Graphite in the ball dissipates static electricity that could otherwise ignite flammable fluids during flow. This adds safety.

PTFE, silicone, viton, and other resilient seal materials allow tight shut off even after thousands of cycles. Metal seats can also be found in high temperature designs.

For applications with very high differential pressures, a blow-out proof stem has upper and lower seals to prevent leaks if overpressure blows the stem upwards.

Locking mechanisms like padlocks, valve locks, or tamper-proof handles prevent unauthorised operation or accidental valve position changes.

100% testing involves leak checks, seal validation, and flow performance verification to ensure perfect functioning and no defects.

Look for ISO 9001, PED 97/23/EC or ATEX certifications that indicate quality manufacturing and safety compliance.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Air Torque Actuator Videos

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
